OneUp Components Clip Pedal

Select Color

From $55.74

Original: $159.27

-65%

OneUp Components Clip Pedal—

$159.27

$55.74

Select Color

From $55.74

Original: $159.27

-65%

OneUp Components Clip Pedal—

$159.27

$55.74

The Story

Light enough for cross country and durable enough for downhill. OneUp Clip Pedals are an ultra thin, super light pedal with a large platform and a secure feel that you can fine tune. They’re SPD™ compatible and available in 8 colours.

These are your new favourite pedals.

Weight: 410g with pins (4 pins per side)

Thickness: 14.4mm (body), 26.8mm (binding)

Size: 80mm x 90mm (W x L)

Stance width: 57.5mm (center of clip to outside of crank face)

Float: 5° (12° release angle)

Cleats: SPD™ Compatible (includes 1mm cleat spacers for shoe fit tuning )

Bearing configuration: Inboard igus® Bushing and 3x outboard sealed cartridge bearings

Axle: Chromoly Steel with Black ED coating

Pins: Hollow M5x8mm threaded pins (self cleaning hex through hole)

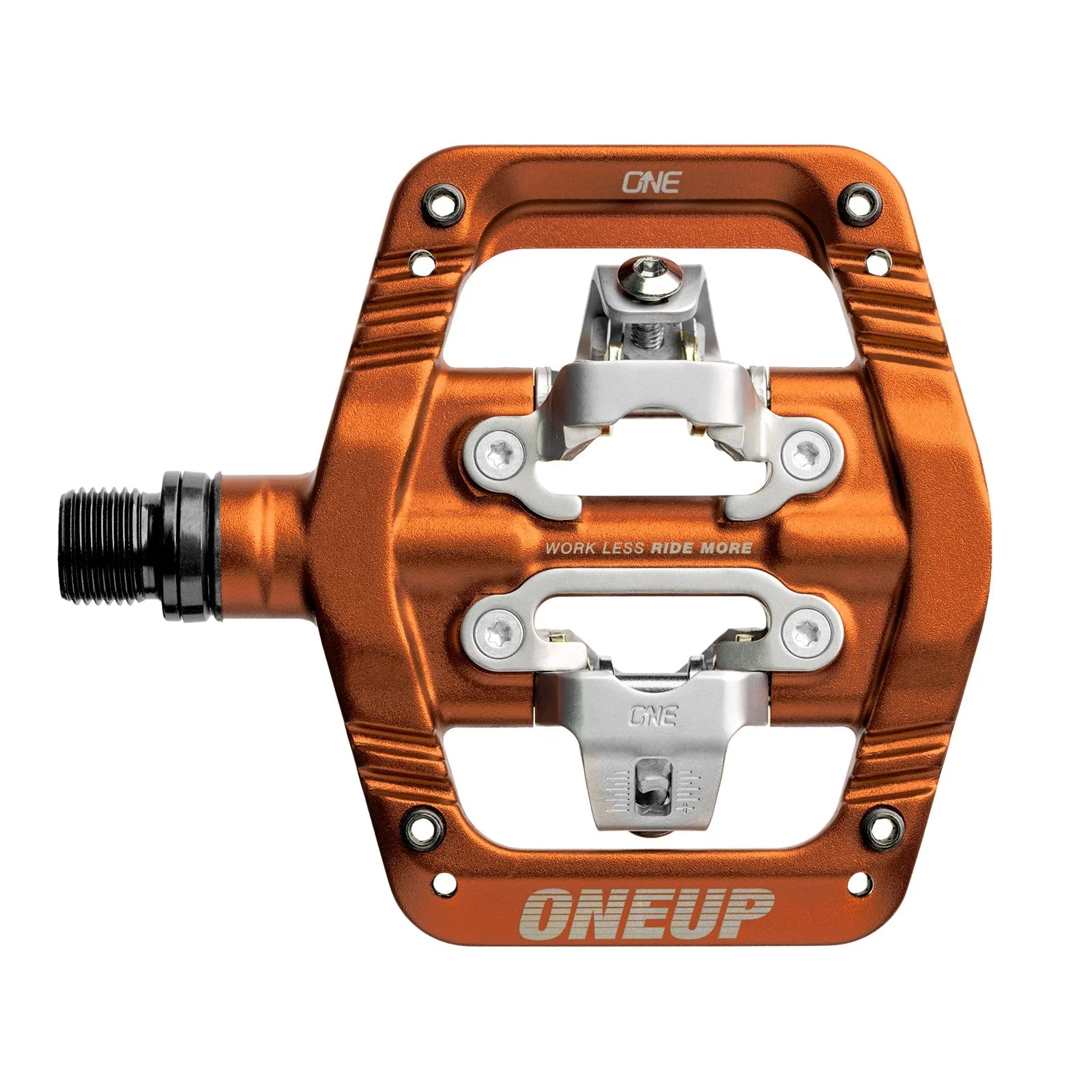

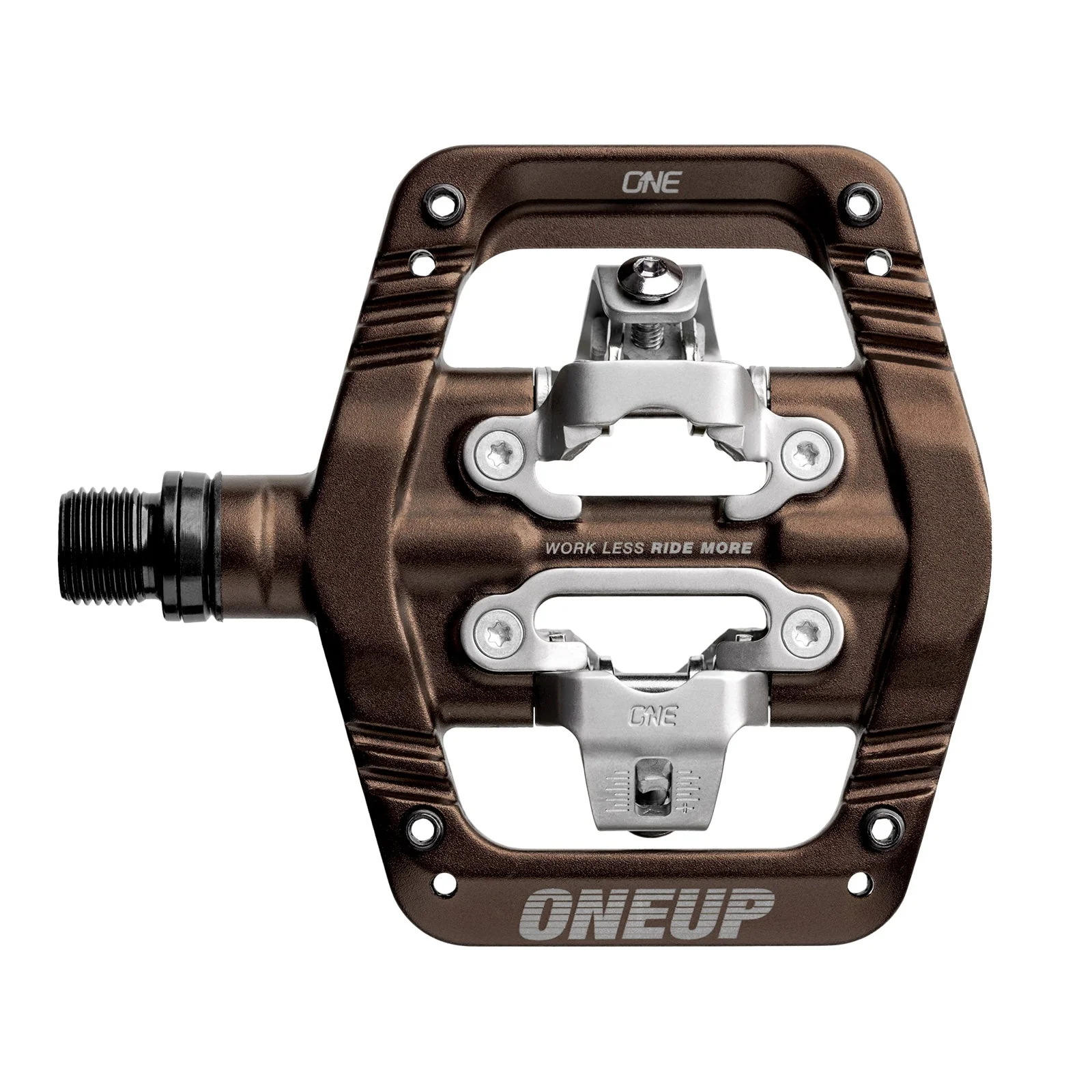

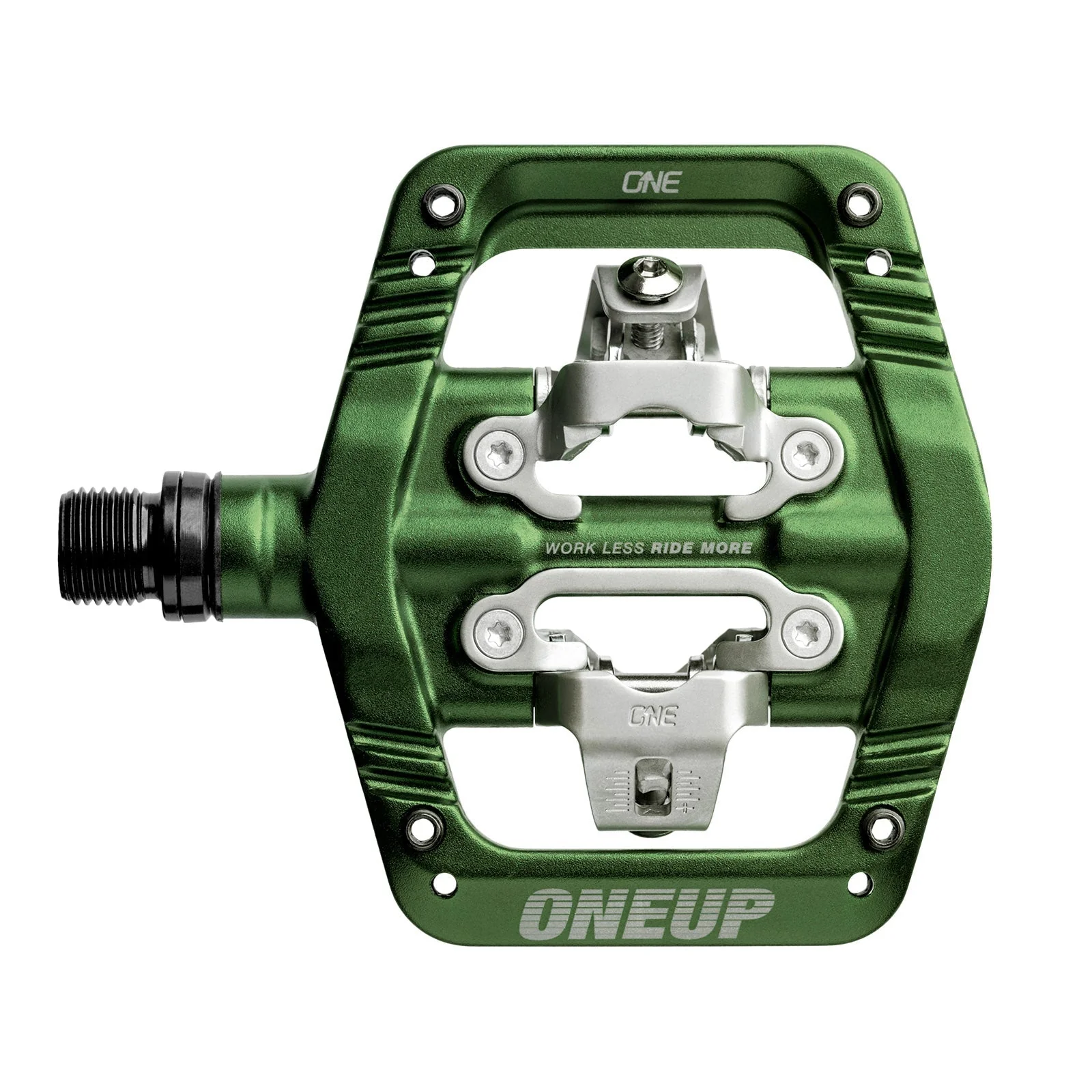

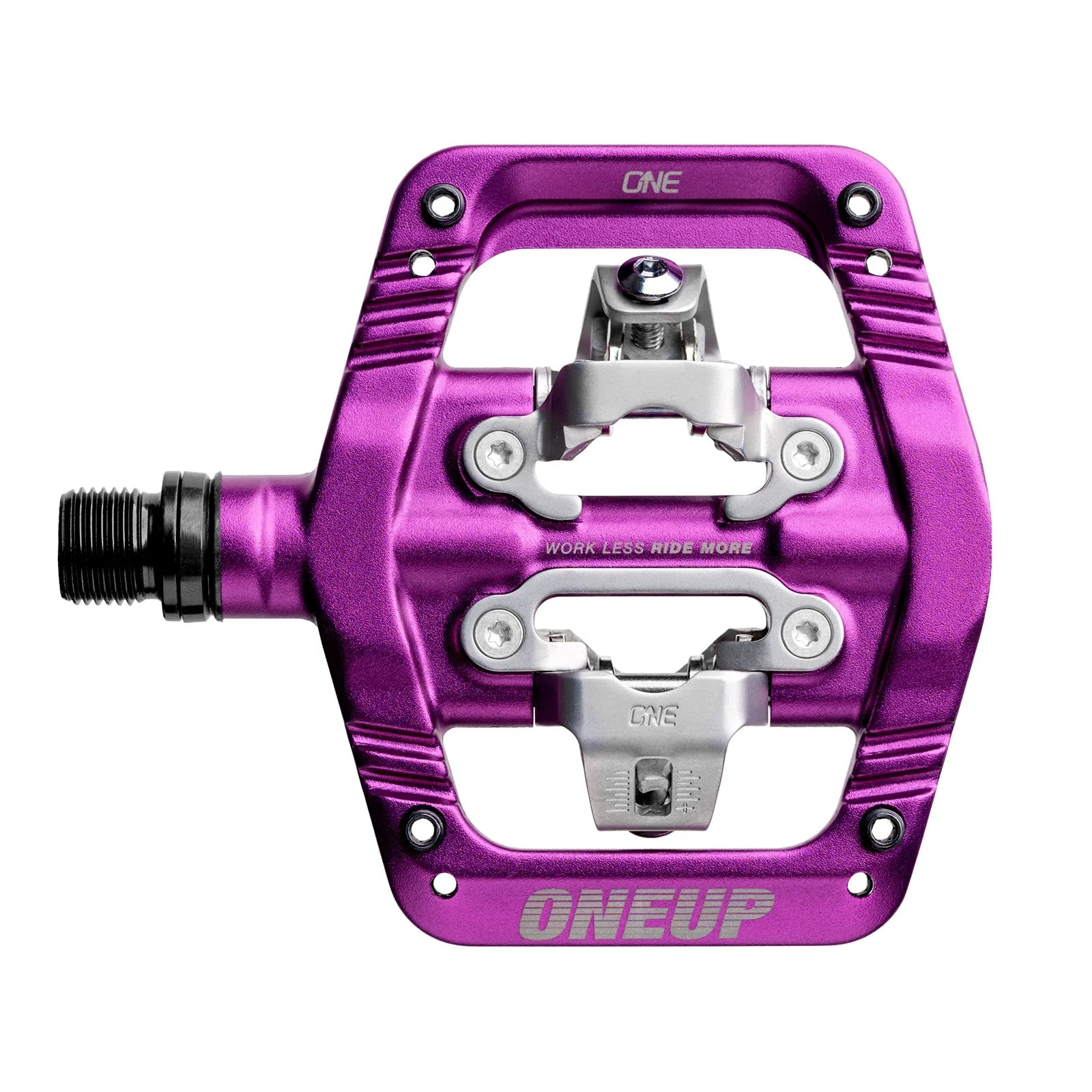

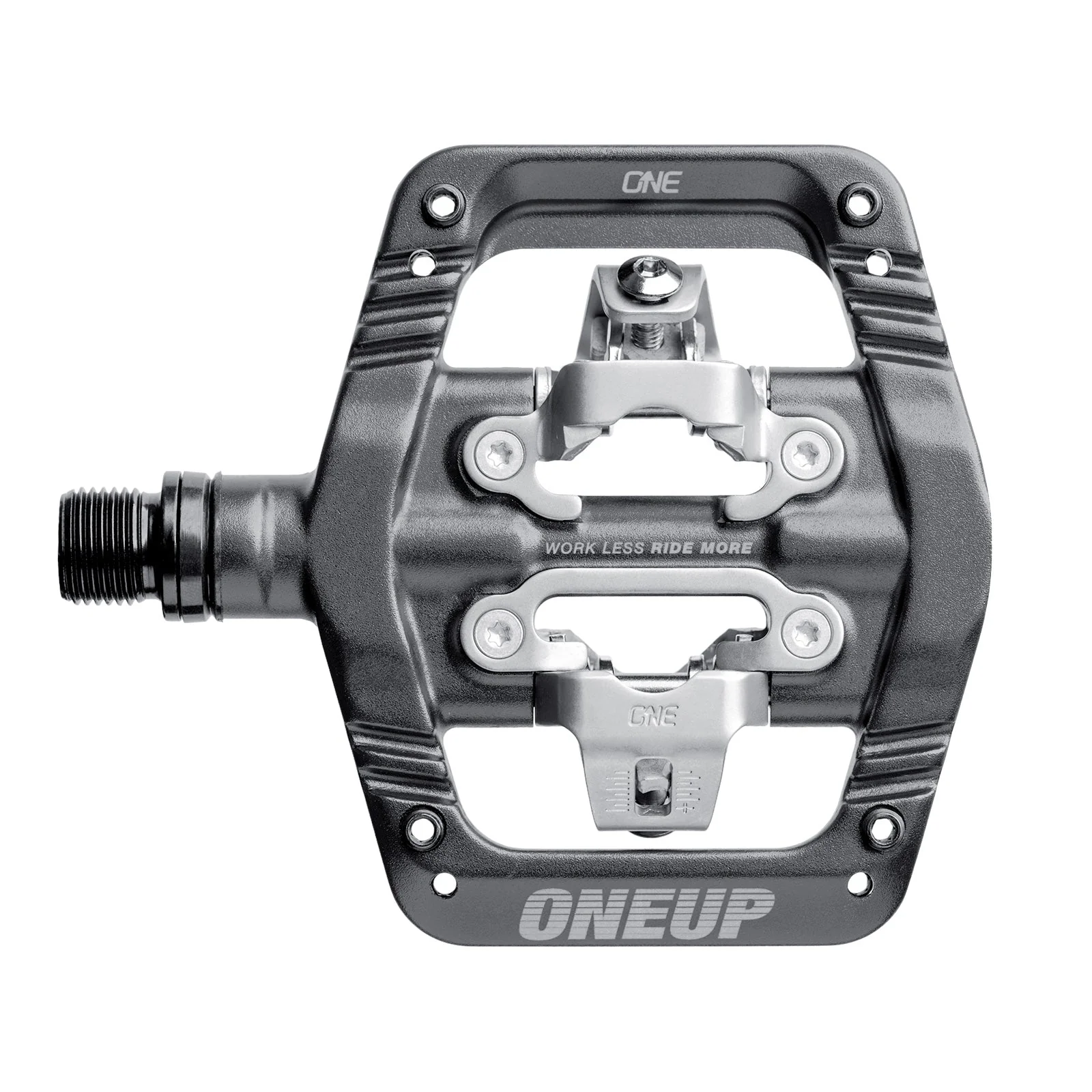

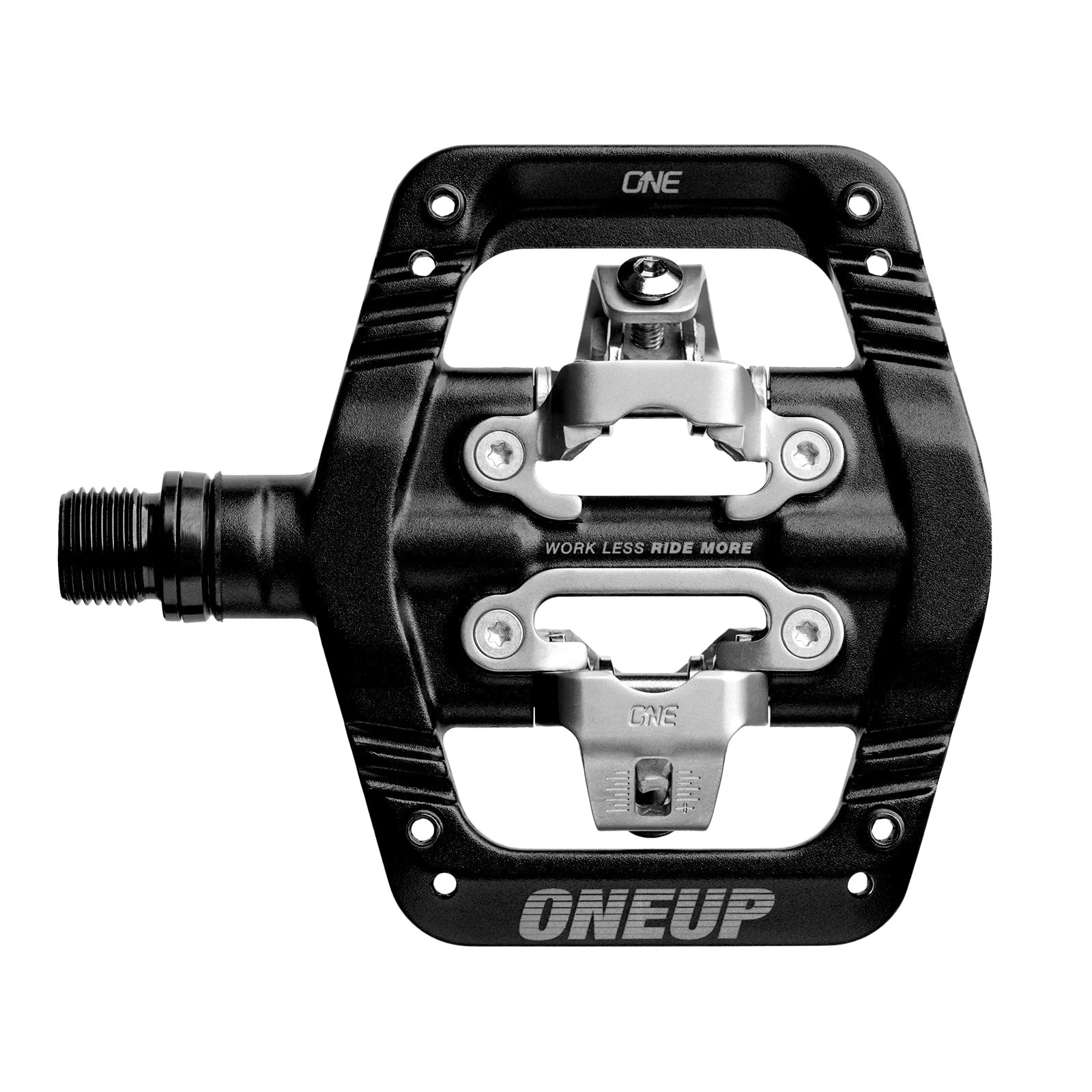

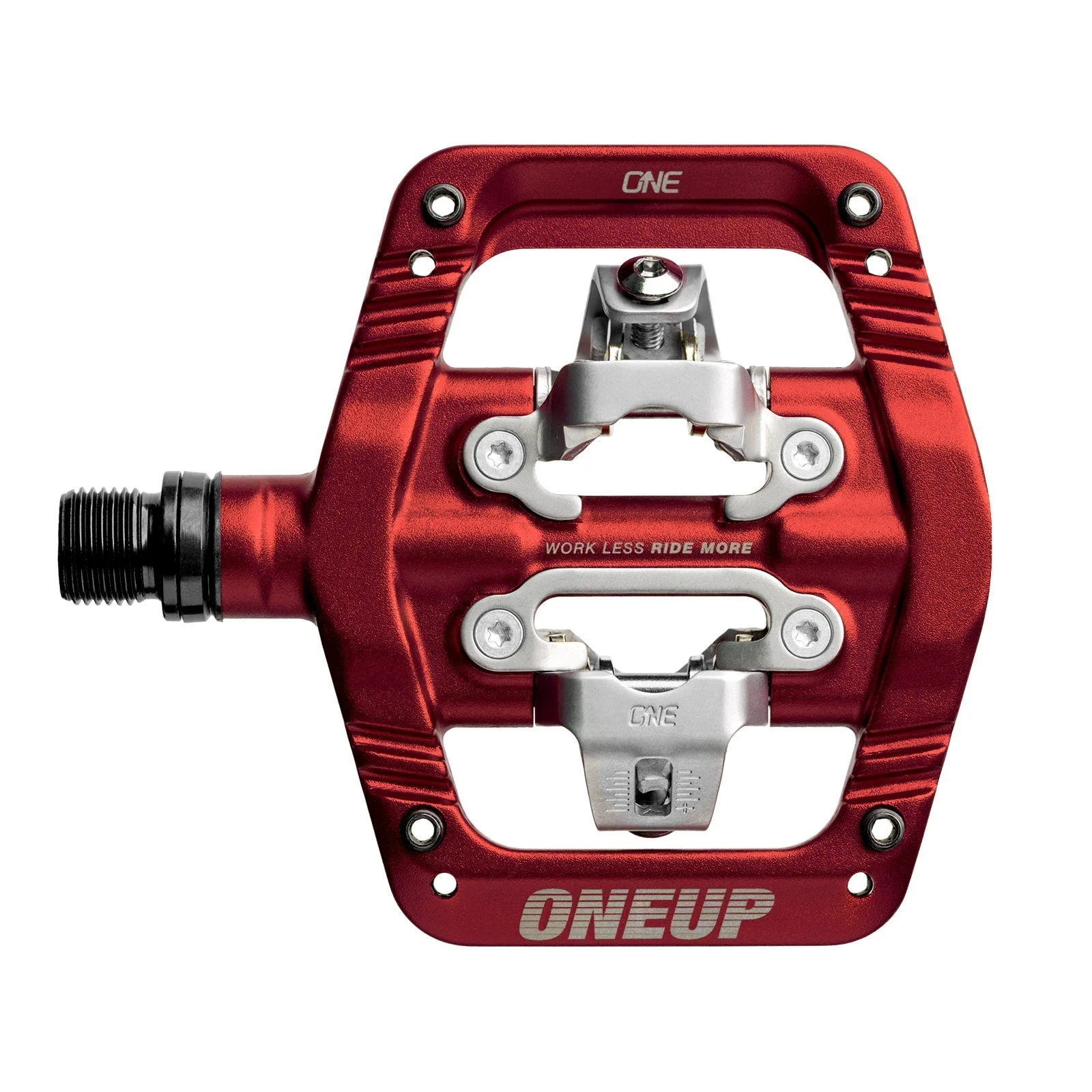

Colours: Black, Red, Green, Blue, Orange, Purple, Grey, Bronze

What's in the Box

2x Clip Pedals (1x Left, 1x Right)

4x Installed hollow threaded pins per side (16x pins total)

2x OneUp Cleats with included hardware

2x Cleat Spacers

1x Pedal Bearing Nut Tool

Things you Should Know

Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.
5 degrees of float and 12 degree release angle.
1 year manufacturer warranty.
Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.
