The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material	Aluminum
Frame	Aluminum MX 150mm Travel, 4-Bar
Travel	150mm
Weight	53.68lbs / 24.35kg
Wheel Size	MX
Suspension
Fork	RockShox Zeb Base, 160mm
Shock	RockShox Super Deluxe Base, 205x60
Drivetrain
Bottom Bracket	N/A
Cassette	SRAM XS 1270 Eagle T-Type, 10-52t
Chain	SRAM 70 Eagle T-Type, Flattop, 12spd
Chainguide	OneUp Chainguide
Crankset	E13 Helix eSpec, 160mm
Rear Derailleur	SRAM 70 Eagle T-Type, 12spd
Brakes
Brakes	SRAM DB8
Front Rotor	SRAM Centerline, 220mm
Rear Rotor	SRAM Centerline, 200mm
Cockpit
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Handlebars	Santa Cruz Bicycles Aluminum Bar, 35x800, 30mm Rise
Headset	FSA IS-2/47/42 ACB
Saddle	WTB Silverado Medium, Steel
Seatpost	SDG Tellis Dropper, 31.6
Stem	OneUp Enduro Stem, 42mm
Wheels
Front Rim	Reserve 30\|HD AL
Front Hub	SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Tire	Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim	Reserve 30\|HD AL
Rear Hub	SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Tire	Maxxis Minion DHRII, 27.5"x2.5", DoubleDown
Valves	Reserve Fillmore Valves
Ebike
Battery	Bosch PowerTube Battery 600Wh
Drive Unit	Bosch Performance CX BDU38
Specs
Bottom Bracket Shell	EMTB
Rear Brake Mount	200mm PM
Shock Length	205mm
Fork Axle to Crown	571mm
Fork Offset	44mm
Front Derailleur Mount	No Compatibility
Headset	Integrated (IS41/52)
Max Chainring Size	36t
Max Rotor Size	220mm
Max Tire Clearance	2.5"
Rear Spacing	148mm
Rear Travel	150mm
Recommended Sag	30%
Seat Clamp Diameter	36.4mm
Shock Stroke	60mm
Suspension System	Four-bar
UDH Compatible	Yes
Water Bottle Mounts	1

Geometry

All units are in millimeters or degrees.

	S	M	L	XL
Reach	433	458	478	498
Stack	625	634	643	656
Head tube angle	64.1°	64.1°	64.1°	64.1°
Head Tube Length	110	120	130	145
Rear Center	440	440	445	445
Front Center	771	800	825	851
BB Height	342	342	342	342
BB Drop Front	30	30	30	30
BB Drop Rear	13	13	13	13
Wheelbase	1211	1241	1270	1297
Top Tube Length	578	606	628	652
Seat Tube Length	380	400	420	460
Seat Tube Angle	76.9°	76.9°	76.8°	76.8°

Sizing

Small

5'1"-5'5"Reach: 435mm

Medium

5'5"-5'9"Reach: 460mm

Large

5'9"-6'1"Reach: 480mm

X-Large

6'0"-6'4"Reach: 500mm

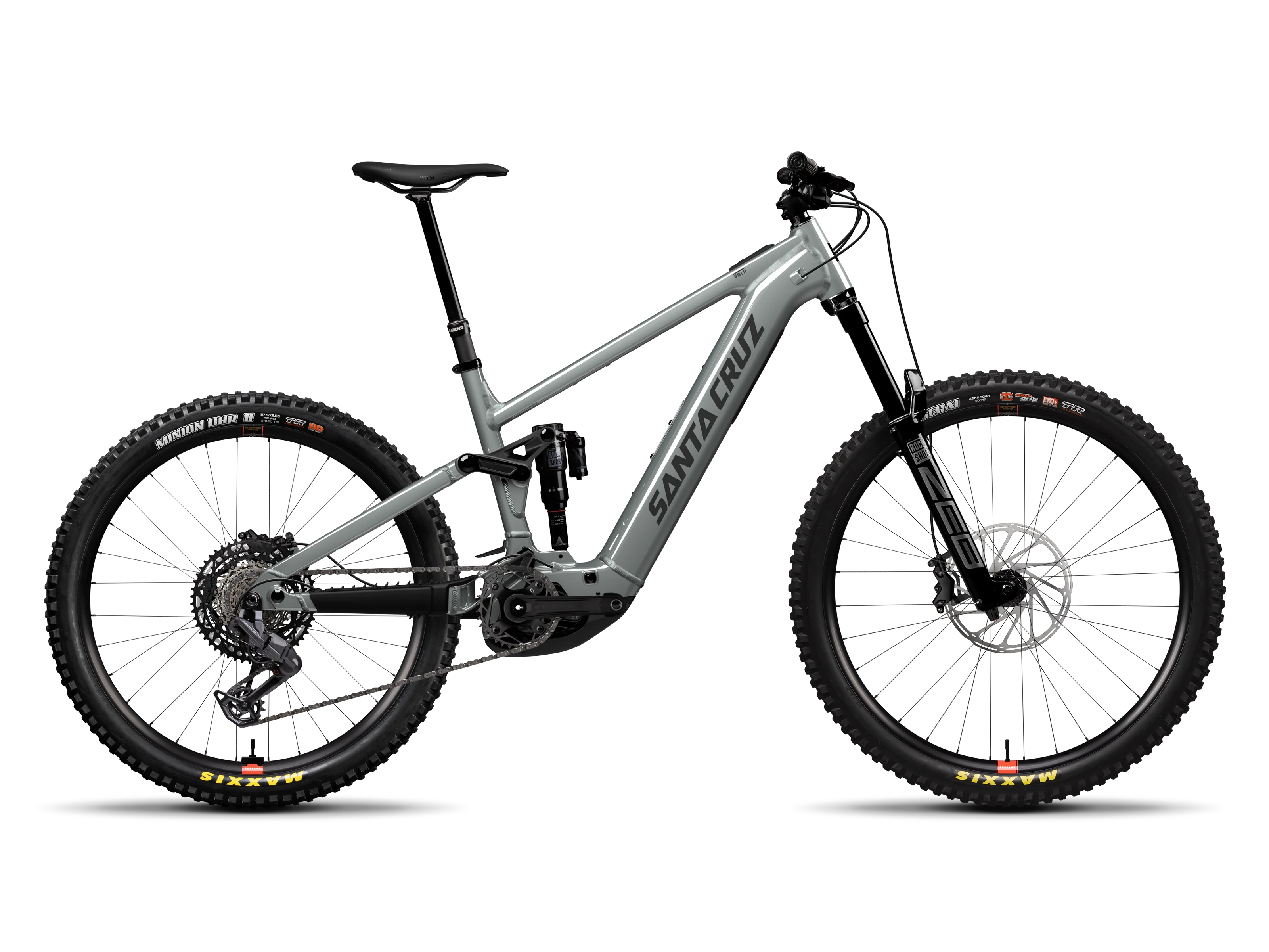

2026 Santa Cruz Vala AL
